NewRanger scissor knives

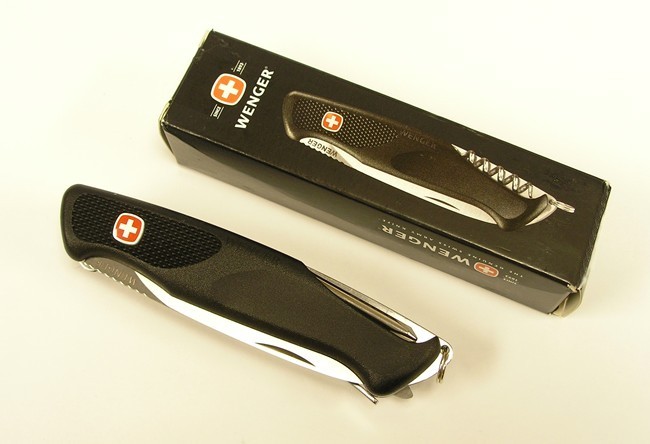

Model 172 Gardener, closed Wenger introduced a wide variety of 120mm NewRanger knives in 2007. Evo contoured grip panels and a push-button lock release distinguish them from the previous Ranger series. Most exciting of all, an elegent folding scissor mechanism (and folding plier on some models) was developed which gave the NewRangers the ability to compete with full sized secateurs and shears-type multitools from other makers.



Model 172 Gardener, scissors

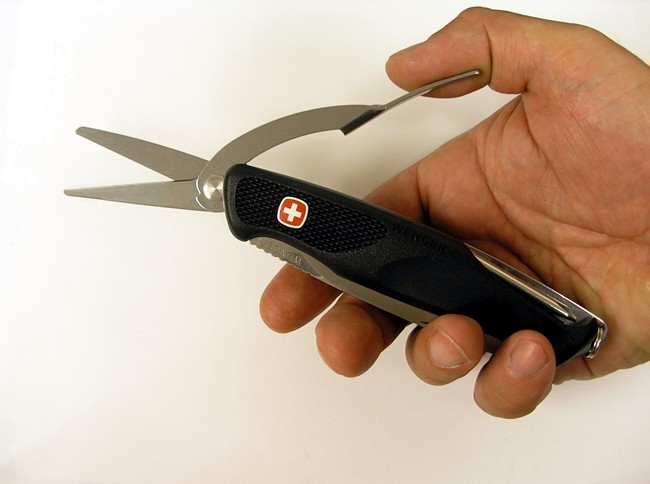

scissors unfolded

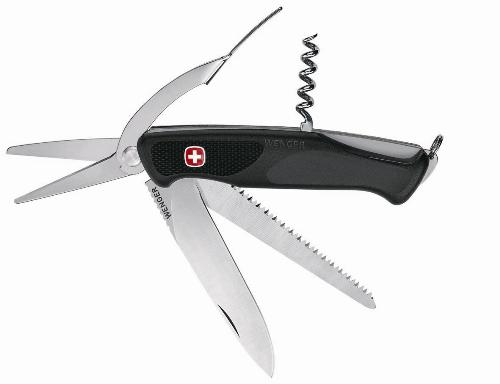

Model 71 Gardener
Model 71 Gardener

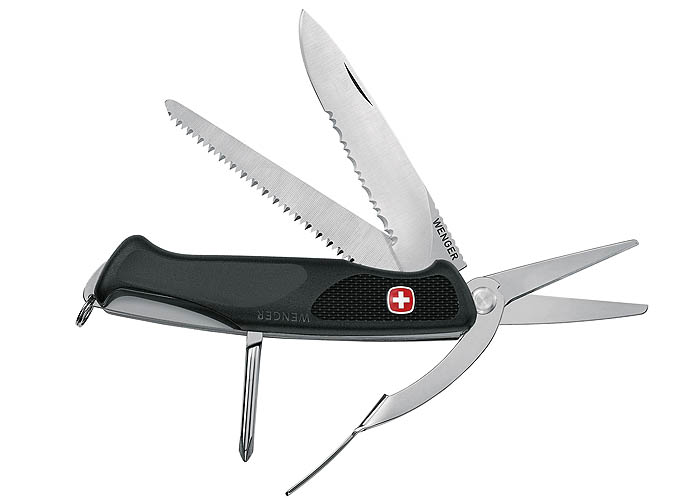

Model 172 Gardener
Model 172 Gardener

Handles/Frame

NewRangers are equipped with nylon scales, contoured in the Evo style to fit the hand. Deep checkering is molded into the thumb area on both sides. It is only available in black. One side carries the Wenger cross logo, along with the Wenger name molded in. The cross logo icon itself is actually a push button, which when depressed releases the liner lock on the knife blade.

Scissors

The scissor and scissor handle are a clever three-piece assembly that folds completely away when not needed. Despite this complex function they are quite strong and rugged.

The scissors themselves are spring loaded, powered by the backspring.

Note that the scissors and handle are both somewhat thinner than their counterparts on the NewRanger plier knives, resulting in the entire tool being slightly thinner.

Blades

The NewRanger scissor knives are equipped with different blade selections depending upon the model. Following is the blade selection of the Model 71 Gardener. See VARIATIONS below for other models.
  • Plain edge knife blade with drop point profile. WENGER is stamped near the base. Overall length is 3-3/4" (95mm)
  • Large saw blade
On the backspring:
  • Corkscrew

Locking Mechanism

Wenger's NewRanger series of knives employ a standard liner lock to lock the main blade open. Release of this lock is accomplished by depressing the white and red Wenger cross button on the side of the handle.

Other Features

A split key ring is firmly attached to a mounting hole in the frame.

Sheath

None.

Dimensions

  • Folded length = 5" (130mm)
  • Total length, blade unfolded = 9" (225mm)
  • Total length, scissors unfolded = 7-1/2" (190mm)
  • Thickness = 1-1/8" (30mm)
  • Weight = 7.2 oz (202g)

Variations

NewRanger scissor knife models differ only in their blade selection. See BLADES above for those included with the Model 71 Gardener. Additional models are as follows:

  • Model 172 Gardener - same as Model 71, except the corkscrew has been replaced with a phillips screwdriver. and the knife is partially serrated.

Background

The NewRanger series was introduced in 2007. They are produced in Switzerland. Of the variations listed above, at this time only the Model 172 is being imported to North America.
The NewRanger scissor knives share many similarities to the NewRanger plier knives.
