Jaws
ToolClip jaws are a massive affair featuring a blunt nose, large serrated gripping section, and huge bypass wire cutters. Being a solid handle design, the moveable jaw is integral with the plier handle.(No hard wire notch is included)Handle
The solid plier handle has a beveled tip which is intended to function as a prybar. Like the plier jaws, it has a darkened matte metallic finish.Frame
The frame consists of two panels of stainless steel sandwiched around the pliers and blades, held in place by a number of rivets. A SOG SPECIALTY KNIVES inc logo is stamped into one panel.Finish is polished stainless.
Variations

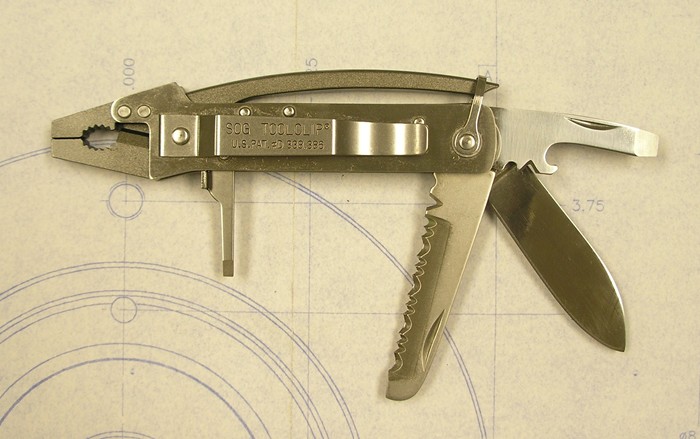

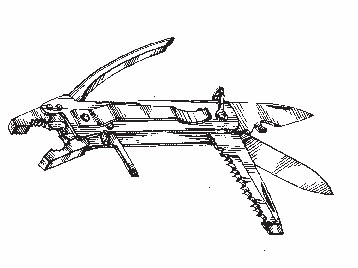

There are essentially two variations of the ToolClip. The first model has the words SOG TOOLCLIP pat. pend stamped onto the pocket clip.The later model is stamped with the following: SOG TOOLCLIP U.S. PAT.#D 338,386
There are further differences in the blade selection.
| First Model |
Blades and Tools, first model
- Plain edge spear point knife blade, measures 2-3/4" long. (70mm)
- Combination blade: with serrated edge knife, file on one side, wire stripper notch, and screwdriver tip on end.
- Combination blade: with large triangle awl, bottle opener, and wire stripper notch.
- Small flathead screwdriver
| Later Model |
Blades and Tools, later model
- Plain edge spear point knife blade, measures 2-3/4" long. (70mm)
- Combination blade: with serrated edge knife, file on one side, wire stripper notch, and sheepsfoot end.
- Combination blade: with large flathead screwdriver, bottle opener, and wire stripper notch.
- Small flathead screwdriver
Locking Mechanism
None of the blades lock open.Other Features
A large pocket clip is attached to one side. (Giving the ToolClip its name)A folding bail serves to lock the pliers closed when not in use.
Sheath

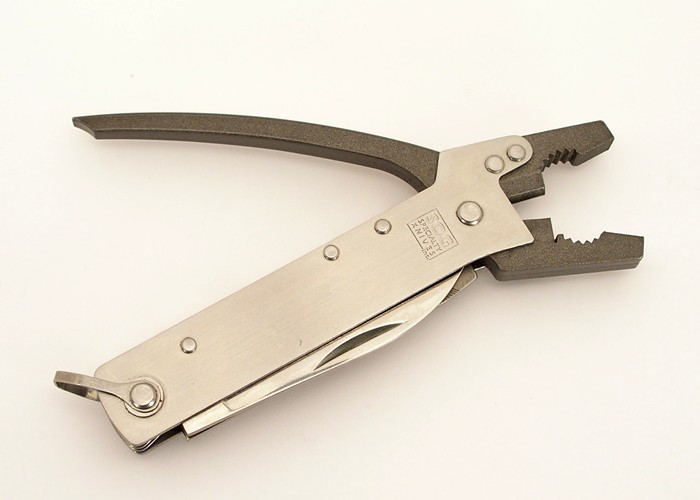

back side
None.
Dimensions
- Length = 5-1/4" (134mm)
- Width = 1-3/8" (36mm)
- Thickness = 3/4" (17mm)
- Weight = 7.6 oz (206g)
History
Introduced by SOG in 1991. Made in Seki Japan. Awarded Blade Magazine's Most Innovative Imported Design for 1991.
Related Tools
The SOG Micro ToolClip is essentially a scaled down version.
More Info
- SOG ToolClip review - at Multitool.org
- Multi-Plier 400 advertisement ''- from 1999
History
|
| |
| back side |
Dimensions
- Length = 5-1/4" (134mm)
- Width = 1-3/8" (36mm)
- Thickness = 3/4" (17mm)
- Weight = 7.6 oz (206g)
History
Introduced by SOG in 1991. Made in Seki Japan. Awarded Blade Magazine's Most Innovative Imported Design for 1991.Related Tools
The SOG Micro ToolClip is essentially a scaled down version.More Info
- SOG ToolClip review - at Multitool.org
- Multi-Plier 400 advertisement ''- from 1999
